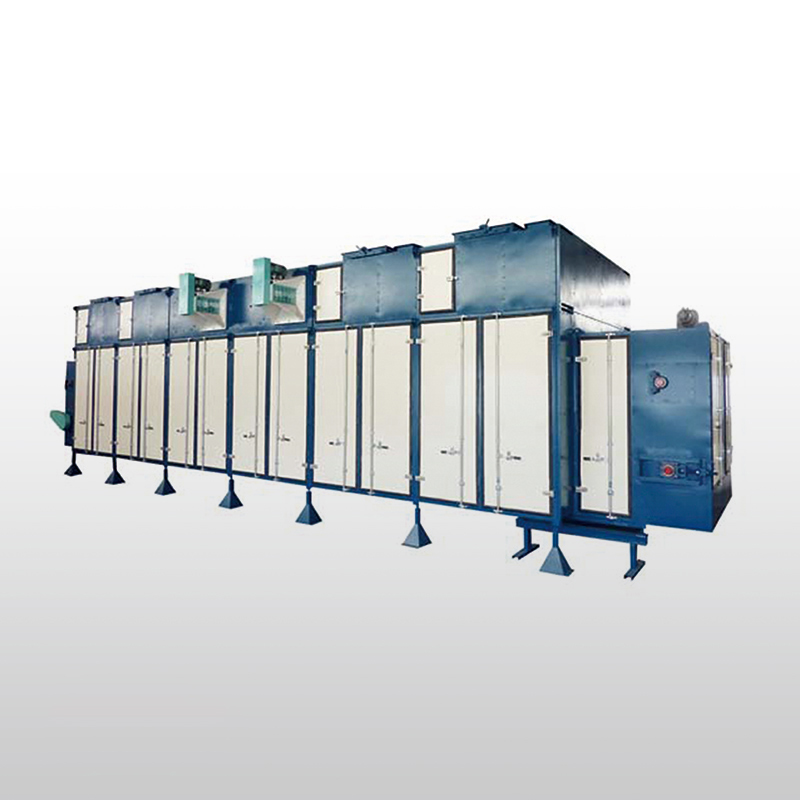

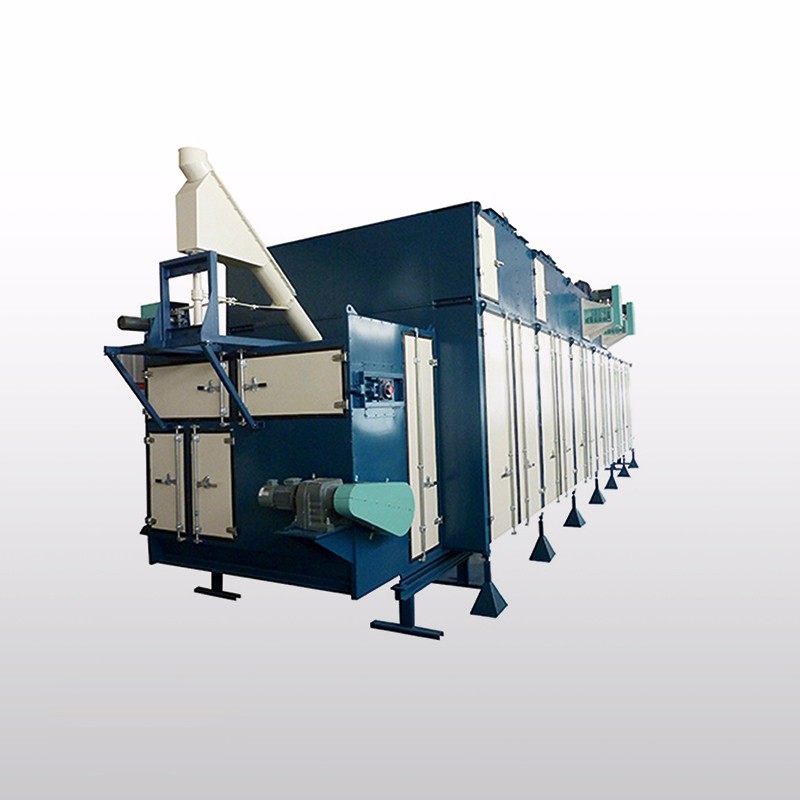

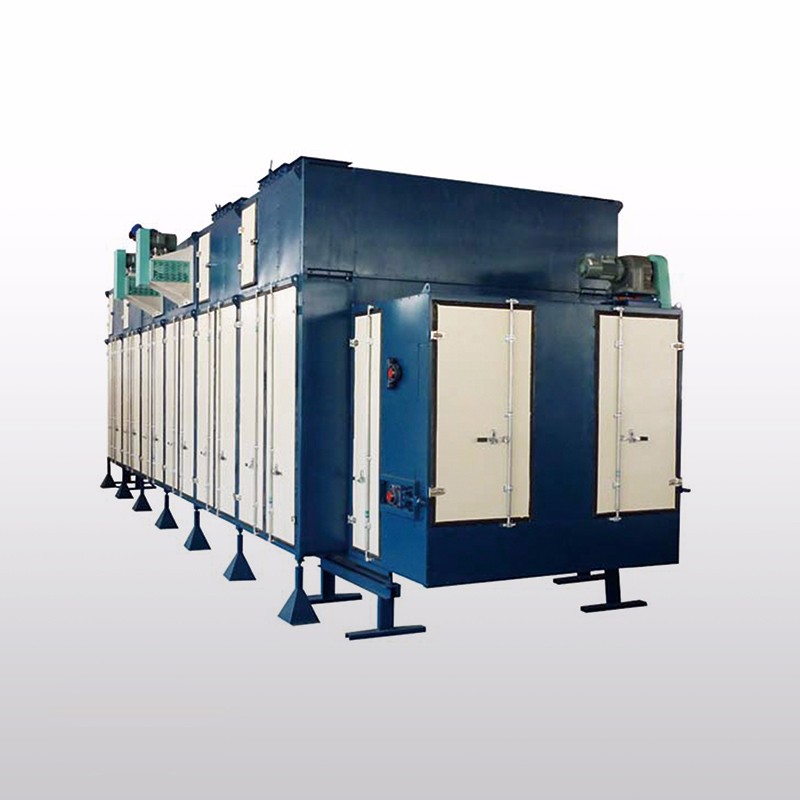

SHGW系列卧式环流干燥机

    • SHGW系列卧式环流干燥机
    • SHGW系列卧式环流干燥机
    • SHGW系列卧式环流干燥机
产品详情

产品特点

1、热风在干燥机内的流量可根据物料的特性和干燥要求进行改变,从而达到很好的干燥效果;
2、>50%的热风可循环使用,箱体采用保温,节省能耗和降低生产成本;
3、带有自动清扫机构,底部粉料碎粒自动清理;
4、双层履带带动物料运动,从而减少了物料破损现象;
5、适用于水产料、膨化料的干燥处理。

主要技术及性能参数

型号

产量(t/h)

干燥面积(m2)

带宽(m)

功率(kw)

失水率(%)

SHGW120×2

1.5-2

20

1.2

28

15

SHGW180×2

3-4

30

1.8

36

15

SHGW240×2

4-5

40

2.4

48

15

SHGW series horizontal circumfluent dryer

SHGW系列卧式环流干燥机

Features

1、Adopt international advanced swing laying bead, even laying and even moisture of feed.

2、Tracks are made from stainless steel punched-plate, no sticking, anti-corrosion and cleaning.

3、The machine is equipped two tracks, materials will come and go four times on the tracks, which make sufficient use of space, maximum improve drying efficient and evenly.

4、Built-in heating and hot air circulative using system, which reduce stream consumption and cost.

5、Entrances and exits of air are designed in different during sections, which control the temperature and moistures efficiently. Drying speed is adjustable, high quantity after drying.

6、Adopt modularization designation, length and direction can be adjusted to demand, you can choose the tracks of 1.2m, 1.8m or 2.4m.

Main Technical Parameters

Model

Capacity

(T/H)

Drying area

(m2)

width of Belt

(m)

Power

(KW)

Water removal(%)

SHGW120×2

1.5-2

20

1.2

28

15

SHGW180×2

3-4

30

1.8

36

15

SHGW240×2

4-5

40

2.4

48

15
