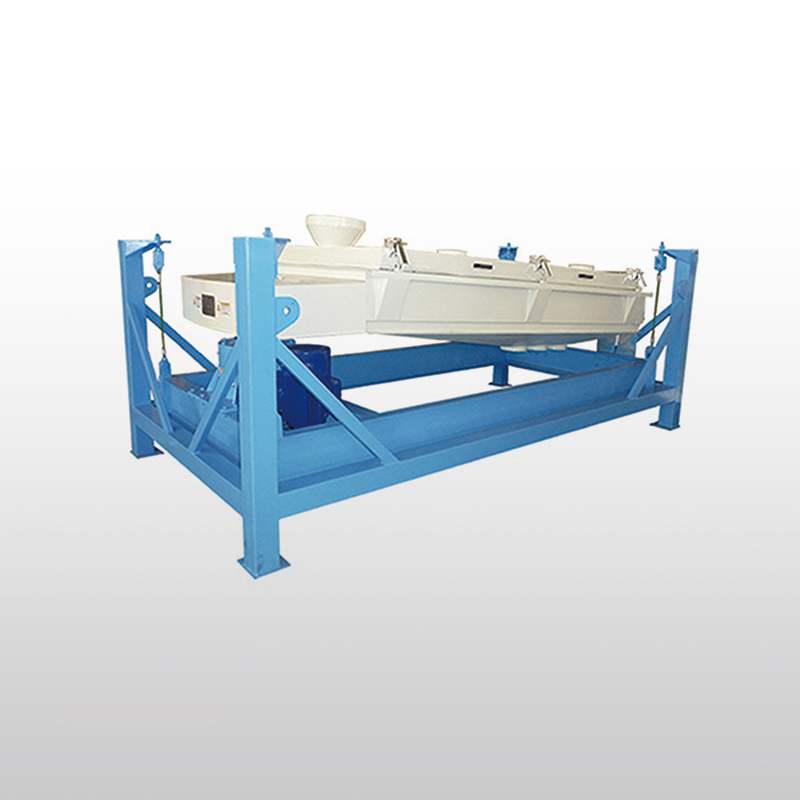

SFJH-2C系列回转分级筛

    • SFJH-2C系列回转分级筛
产品详情

产品特点

1、组合圆周、椭圆、直线三种运动方式,筛理效果好;
2、筛船驱动采用皮带传动,偏重平衡、噪声低。筛船尾部支撑为改进型弹性支撑,振动小,噪音低;
3、加强型机座,保证设备运转更平衡,亦可根据实际场地情况采用吊挂式结构,满足客户改造需要;
4、改进钢丝绳吊挂结构,避免钢丝磨损;
5、采用一体或组合式筛盖筛框结构,筛盖重量轻、刚性强,密封性好。换筛更方便,更快捷;
6、用于粉状或颗粒饲料的筛选和分级,也可用于饲料厂原料的初清,以及大、中型饲料厂二次粉碎后中间产品的分级。

主要技术及性能参数

参 数

型 号

动力(kw)

产量(t/h)

粉状料

颗粒料

2C系列

SFJH56×2C

1.1

1-3

3-5

SFJH80×2C

1.5

3-5

5-8

SFJH110×2C

2.2

6-8

8-10

SFJH125×2C

3.0

8-12

9-15

SFJH130×2C

4.0

9-13

12-16

SFJH140×2C

5.5

12-16

14-20

SFJH150×2C

5.5

14-18

16-22

SFJH155×2C

5.5

15-20

16-25


SFJH-2C Series Rotary Screener

SFJH-2C系列回转分级筛

Features

1. Three moving modes i.e. circumferential, elliptical and rectilinear are combined, resulting in good sifting effect;
2. Belt is adopted for driving the screener hull. The bias weights are balanced and low noise. The support at the tail of screener hull is an improved elastic support with less vibration;
3. The strengthened base ensures that equipment run more smoothly. And the hanging structure can be used according to the actual site conditions so as to meet client’s requirements of retrofit;
4. The improved steel cable structure avoids the wearing of steel cab≤
5. The adoption of one body or combined screener cover structure guarantees lower screener cover’s weight, stronger rigidity and better sealing;
6. Capable of sifting and classifying of mash or pellet feed. It is also can be used for cleaning of raw materials and classifying of semi finished products after secondary grinding of large and medium feed mills.

Main Technical Parameters

Parameters

Model

Power(kw)

Output(t/h)

Mash

Pellet

2C Series

SFJH56×2C

1.1

1-3

3-5

SFJH80×2C

1.5

3-5

5-8

SFJH110×2C

2.2

6-8

8-10
