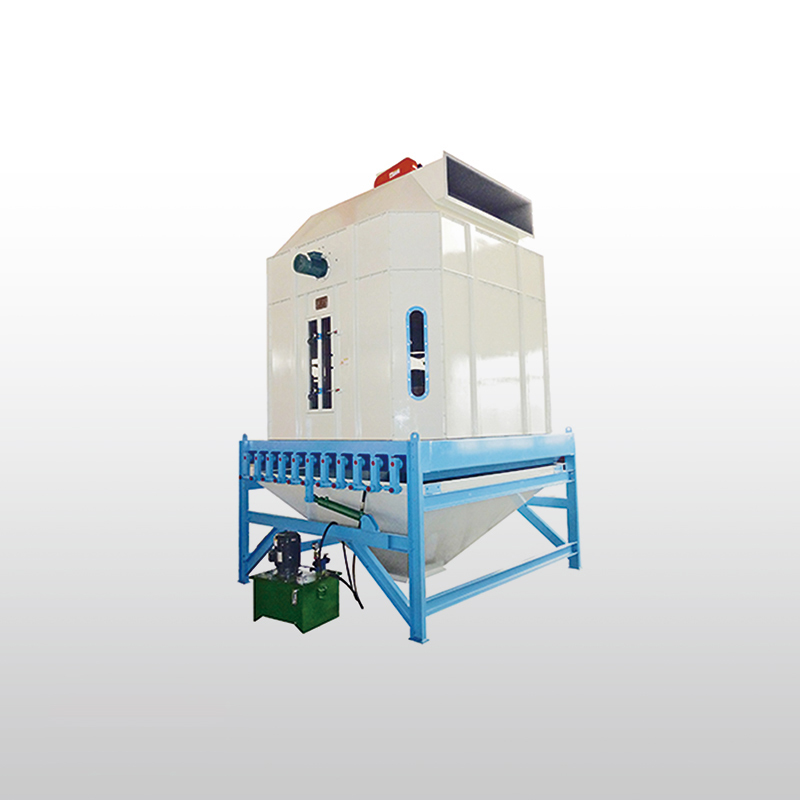

SKLB 系列摆式冷却器

    • SKLB 系列摆式冷却器
产品详情

产品特点

1.独特的冷却原理,使物料与冷空气充分接触获得很好的冷却效果。

2.体积容量比相同型号的逆流冷却器扩大1.3倍,特别适合膨胀后物料体积增大的需要。

3.上部设有旋转匀料机构,使机内料层维持同一水平,冷却效果更均匀。

4.采用摆杆式排料机构,颗粒糊化度小,与膨胀器配套使用,更能显出优越性。

5.活动部件少,结构简洁,噪音低,无故障。

6.冷却温度不高于室温5℃,远远优于国家标准。

主要技术及性能参数

型 号

参 数

SKLB1.5

SKLB2.5

SKLB4

SKLB6

SKLB8

冷却容积(m³)

1.5

2.5

4

6

8

生产能力(t/h)

3

5

10

15

20

冷却时间(min)

不少于10-15

冷却后料温(℃)

不高于室温+3~5

吸风量(m³/min.t)

34

配用动力(kw)

0.75

1.1

1.5

1.5

1.5

关风机动力(kw)

0.55

0.55

0.75

0.75

0.75

SKLB Series Swing Cooler

SKLB 系列摆式冷却器

Features

The unique cooling principle makes the material contact with cool air sufficiently to obtain optimum cooling efficiency.

The cubic capacity is 1.3 times of the same type of counterflow cooler, It is specially suitable for expanded material.

A rotary uniforming system is mounted on the upper part which keeps the material at the same level in the machine so that the material is evenly cooled.

The swing link discharge system is used to minimize the powderizing of pellet. If it is completed with expander, it will display more superiority.

Less moving parts with compact structure, low noise and trouble free.

The cooled temperature is not 5℃ higher than room temperature, which is far better than the national standard.

Main Technical Parameters

Model

Parameters

SKLB1.5

SKLB2.5

SKLB4

SKLB6

SKLB8

Volume(m³)

1.5

2.5

4

6

8

Capacity(t/h)

3

5

10

15

20

Cooling time(min)

Less than 10-15Mins

Temperature after Cooling(°C)

Not higher than ambient temperature +3~5

Aspiration(m³/min.t)

34

Power(kw)

0.75

1.1

1.5

1.5

1.5

Power of Airlock (kw)

0.55

0.55

0.75

0.75

0.75
