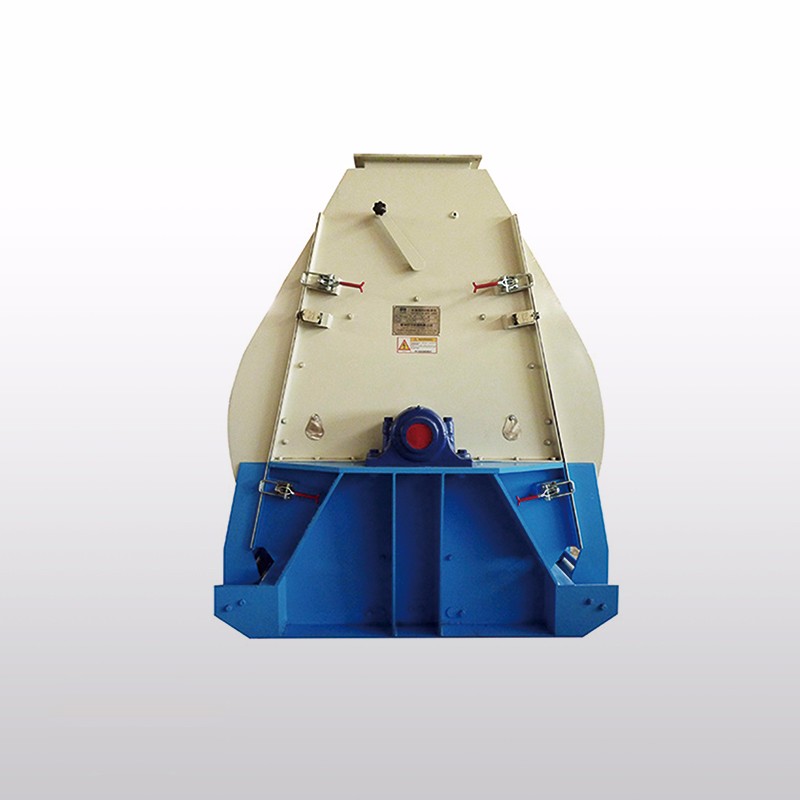

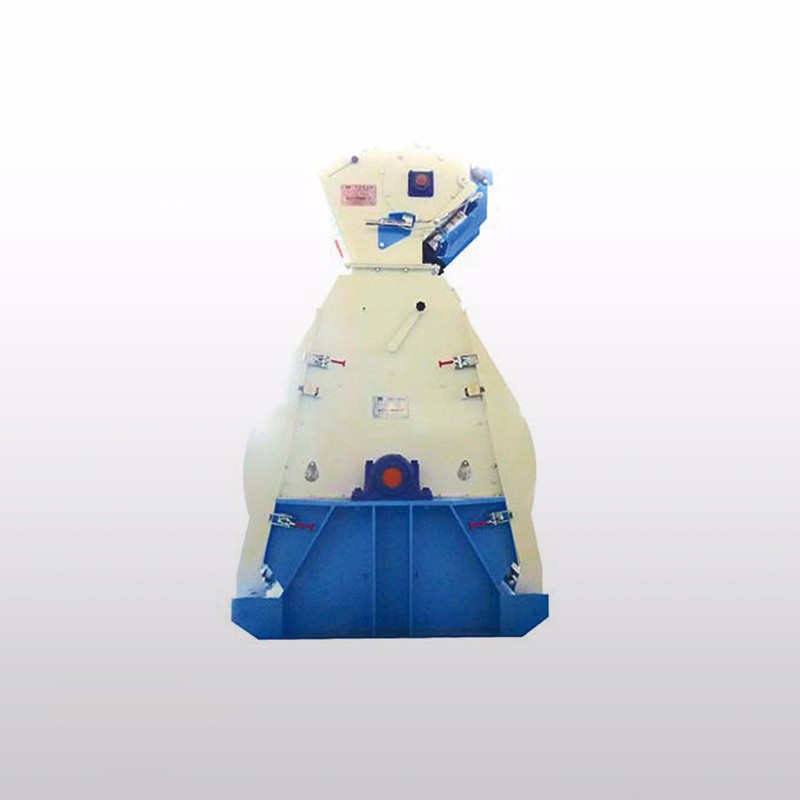

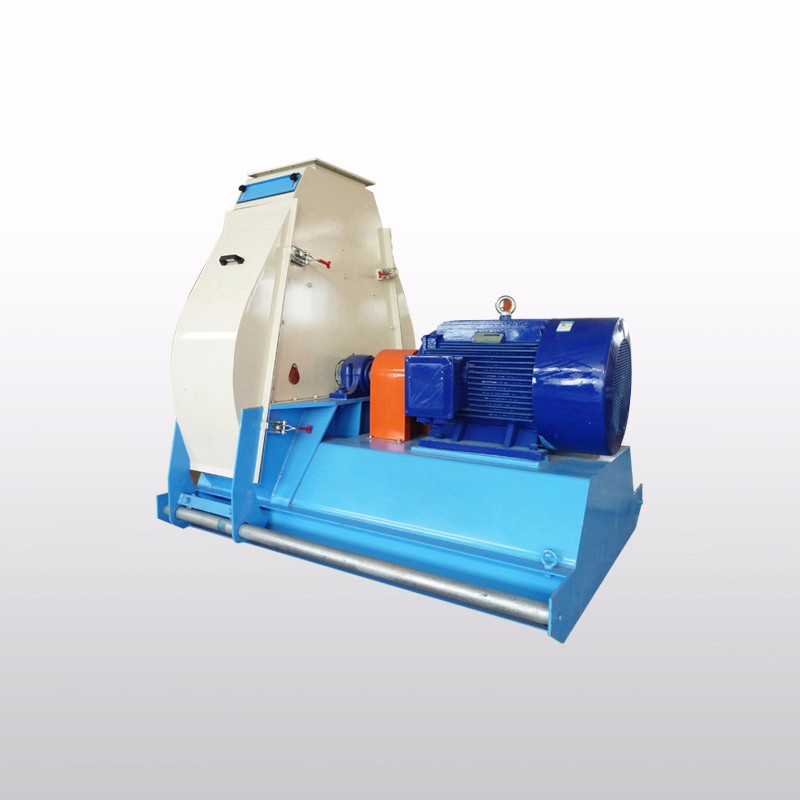

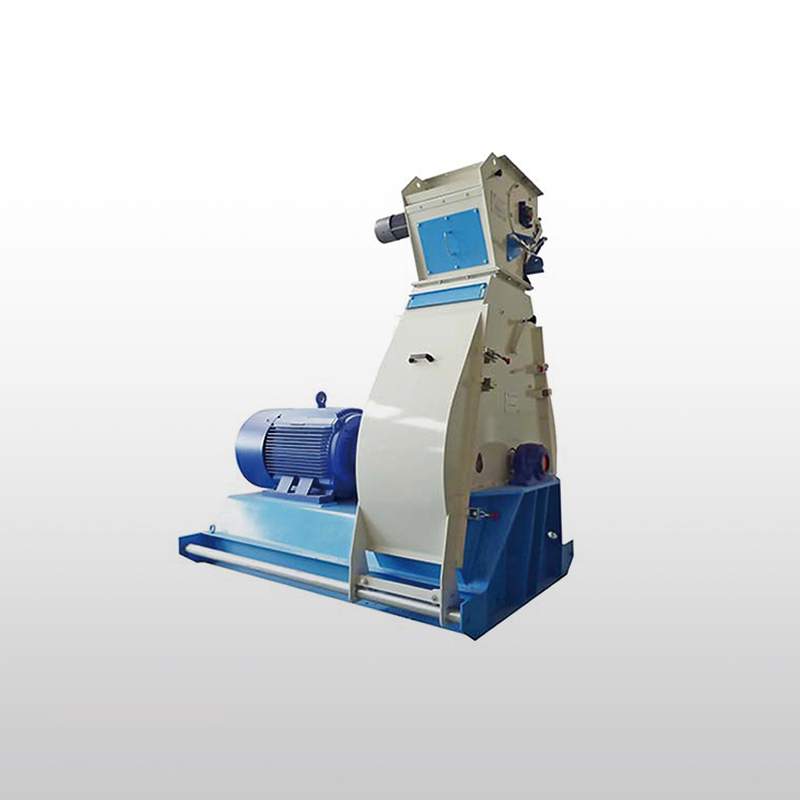

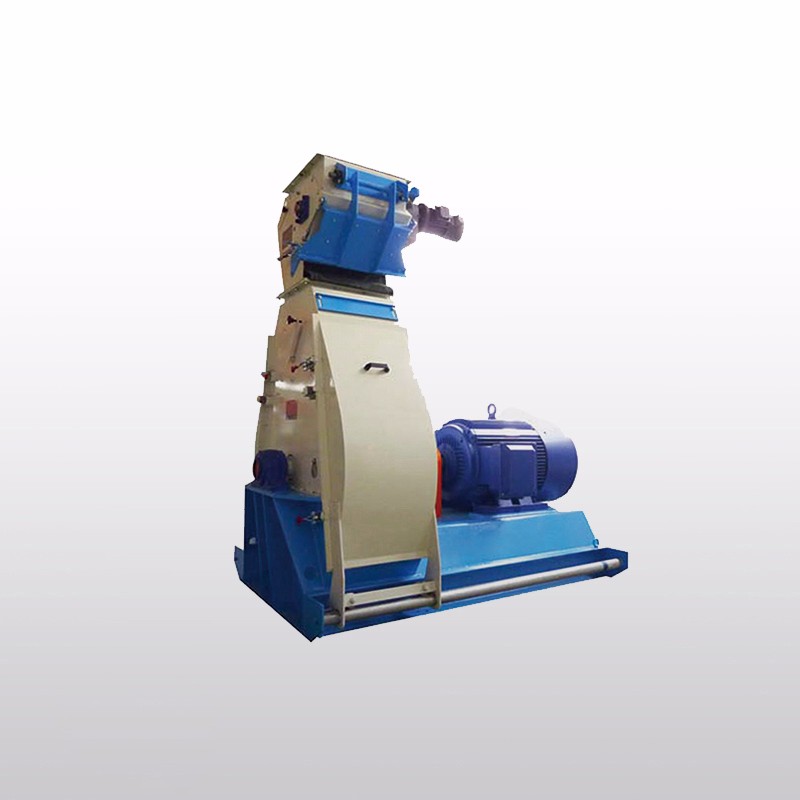

SFSP998系列水滴型粉碎机

    • SFSP998系列水滴型粉碎机
    • SFSP998系列水滴型粉碎机
    • SFSP998系列水滴型粉碎机
    • SFSP998系列水滴型粉碎机
    • SFSP998系列水滴型粉碎机
产品详情

产品特点

1、粉碎室为水滴型,有效消除粉碎过程中的环流现象,产量高;
2、粉碎室底部设置“U” 型二次粉碎机构,更进一步提高产量,粉碎粒度更均匀;
3、转子经精确的动平衡校验,设备噪音低,运行平稳;
4、通过调节锤筛间隙,实现粗粉碎或细粉碎,做到一机两用;
5、新型蛇形连轴器直联传动,补偿位移大,有效避免轴承发热现象;
6、真空焊接硬质合金的锤片;
7、关键部位采用进口部件,寿命长,成本低;
8、全开式操作门,方便检修及更换筛片;
9、广泛应用于各类饲料厂、油厂、酒精厂、柠檬酸厂等的使用。

主要技术及性能参数

型 号

参 数

SFSP998-Ⅰ

SFSP998-Ⅱ

SFSP998-Ⅲ

SFSP998-Ⅳ

转子直径(mm)

1200

1200

1200

1200

粉碎室宽度 (mm)

300

400

500

600

主轴转速(rpm)

1480

1480

1480

1480

配用动力(kw)

55/75

75/90/110

110/132/160

200/220/250

产量(t/h)

10-15

12-20

25-35

38-50

注:以上指标是满足以下情况时的指标:原料为玉米、水份不大于14%,容量不低于0.72t/m3,粉碎机筛板直径为¢3mm,开孔率不低于33%。

Features:

1. The grinding chamber is of tear circle shape, effectively eliminating the circular flow in the grinding process and getting higher capacity;
2. The bottom of grinding chamber is fitted with U-shape double grinding structure, further improving the capacity with evener particle size;
3. All of our rotors pass an accurate dynamic balancing test, resulting in low noise and smooth running.

4. Both coarse and fine grinding can be completed by adjusting the distance between the beater and the screen;
5. New type S-shape coupling directly connecting driving results in big offset travel and effectively avoid the heat from the bearing;
6. Beater blade edge is vacuum-welded by special alloy steel, resulting in long service life;
7. The imported components are used for key parts, resulting in long service life and low maintenance cost;
8. The moving full-wide operation door facilitates maintenance and replacing of beater;
9. It is widely used in various feed mills, oil plants, alcohol plants, citric acid plants, etc.

Main Technical Parameters:

Model

Parameters

SFSP998-Ⅰ

SFSP998-Ⅱ

SFSP998-Ⅲ

SFSP998-Ⅳ

Dia. Of Rotor(mm)

1200

1200

1200

1200

Width Of Grinding Chamber (mm)

300

400

500

600

Speed Of Rotor(rpm)

1480

1480

1480

1480

Power(kw)

55/75

90/110

110/132/160

180/200/220

Output(t/h)

10-15

12-20

25-35

38-50

Re: The above indexes are those when meeting the following conditions: raw material: corn, moisture content not higher than 14%, density not lower than 0.72t/m3, screen: hole diameter ¢3mm, hole-opening rate not less than 33%.
