产品特点
1、机身由双螺旋和顶部喷雾系统组成。轴两端采用了填料密封来提高密封性，防止轴两端漏料；
2、特殊设计的排料机构，开门角度大，排料迅速，残留量少；
3、密封性好，确保不漏料；
4、采用气动(或电动)开门，移动准确可靠，密封性好。
主要技术及性参数
型 号 参 数 | SLHY0.6 | SLHY1 | SLHY2.5 | SLHY5 | SLHY7.5 | SLHY10 |
有效容积(m³) | 0.6 | 1 | 2.5 | 2.5 | 7.5 | 10 |
每次混合量(kg) | 250 | 500 | 1000 | 2000 | 3000 | 4000 |
混合时间(min) | 3-5 | 3-5 | 3-5 | 3-5 | 3-5 | 3-5 |
出料时间(s) | 5 | 5 | 5 | 5 | 55 | 5 |
混合均匀度(cv≤%) | 7 | 7 | 7 | 7 | 7 | 7 |
装机功率(kw) | 5.5 | 11 | 18.5 | 30 | 37 | 45 |

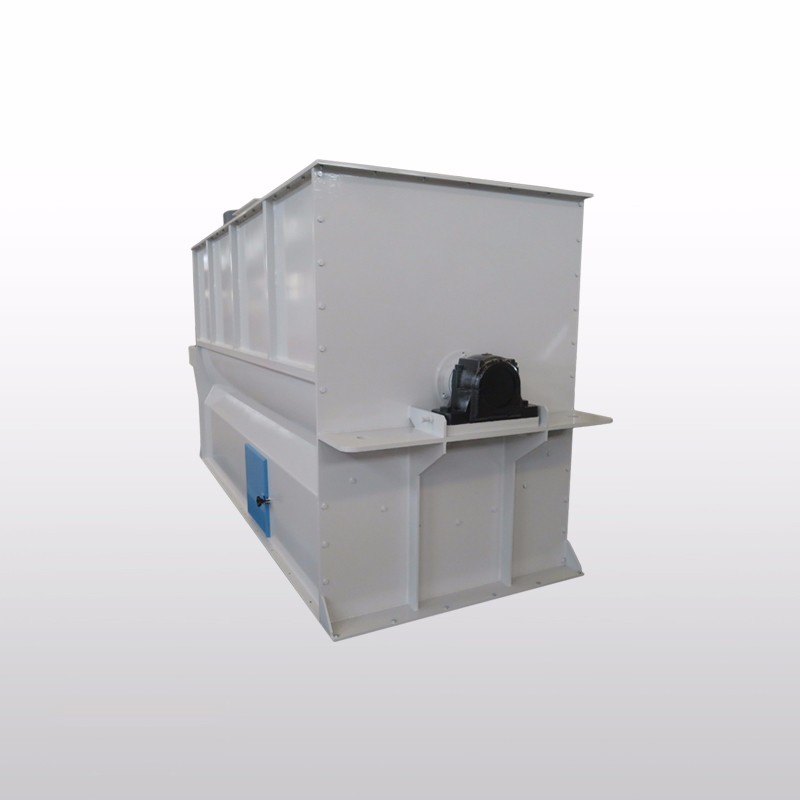

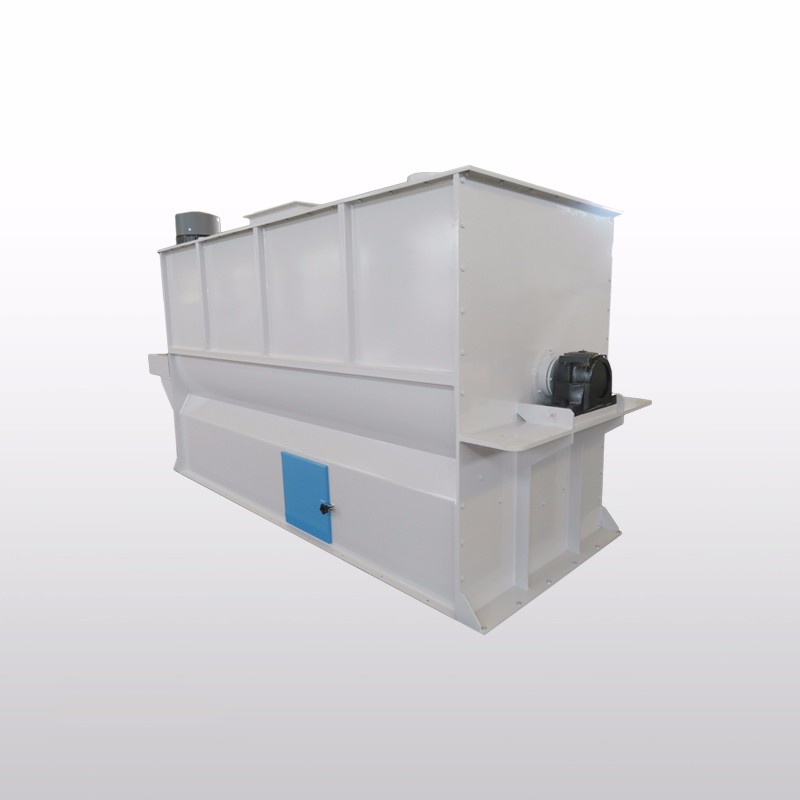

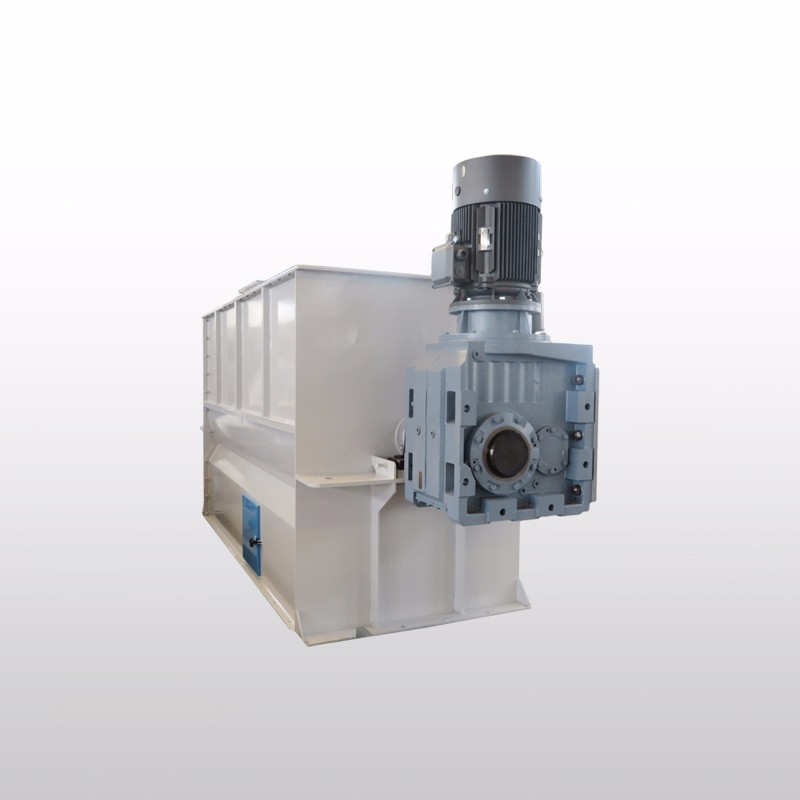

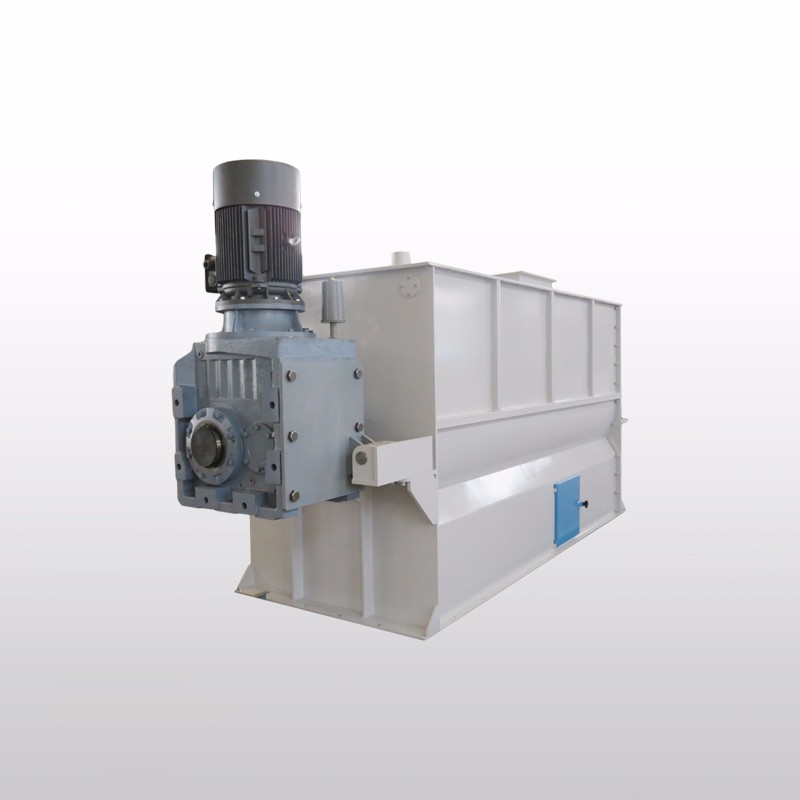

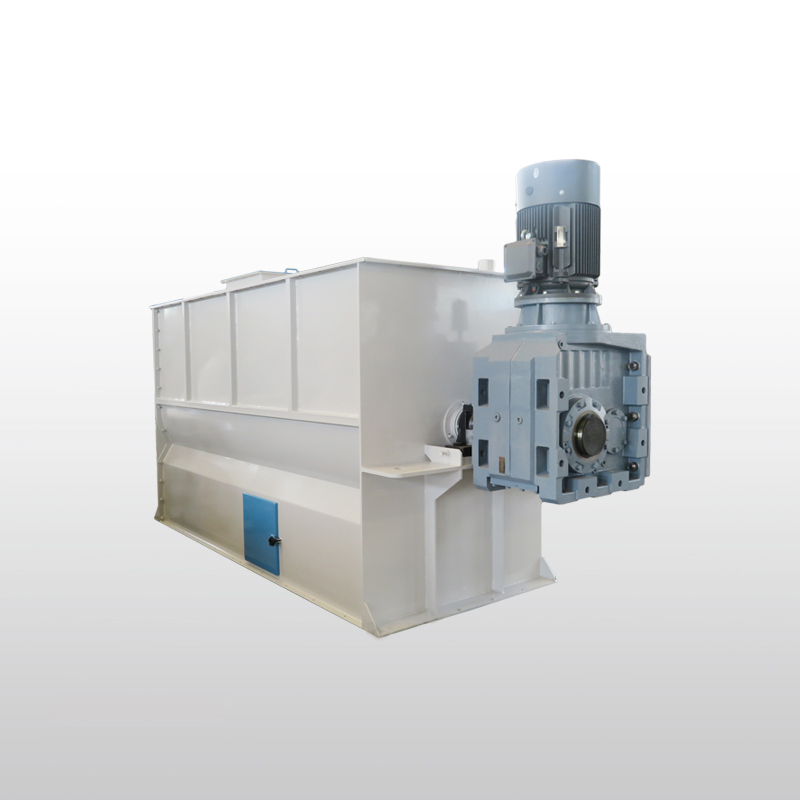

SLHY Series Ribbon Mixer
SLHY系列螺旋混合机
Features
1. The mixing chamber is constituted by twin screws and atomizing system. The filling seal is adopted for ends of shaft to improve tightness and prevent from leaka≥
2. Specially designed discharger has big door-opening angle and quick discharging with little residue;
3. Good tightness and no leaka≥
4. Pneumatic or electric driven discharging is used with correct, stable move and good tightness.
Main Technical Features
Model Parameters | SLHY0.6 | SLHY1 | SLHY2.5 | SLHY5 | SLHY7.5 | SLHY10 |
Volume(m³) | 0.6 | 1 | 2.5 | 5 | 7.5 | 10 |
Capacity /Batch(kg) | 250 | 500 | 1000 | 2000 | 3000 | 4000 |
Mixing Time(min) | 5-6 | 5-6 | 5-6 | 5-6 | 5-6 | 5-6 |
Discharging Time (s) | 5 | 5 | 5 | 5 | 5 | 5 |
Homogeneity (cv≤%) | 7 | 7 | 7 | 7 | 7 | 7 |
Power(kw) | 5.5 | 11 | 15/18.5 | 30 | 37 | 45 |
