SPHS-D系列单螺杆湿法膨化机

    • SPHS-D系列单螺杆湿法膨化机
产品详情

产品特点:

1、 加工的产品颗粒均匀,稳定;

2、 运用PLC程序触摸屏控制,可选择自动添加水和蒸汽,避免不同操作工人为操作的差异而造成产品的不一致;

3、 采用新型材料和工艺加工螺杆,提高螺杆的寿命;

4、 各节膨化腔温度可单独控制,简单方便。

5、 合理有效地利用能量。充分地利用蒸汽,减少电能的消耗,降低配件的磨损,从而减少了加工成本;

6、 主要适用于各种水产饲料的成型加工等。

主要技术及参数

型号

参数

SPHS165D

SPHS218D

螺杆直径(mm)

165

218

螺杆长径比

13.5

13.5

主机功率(kw)

160

250

切割电机转速(rpm)

0~2900

0~2900

产量(t/h)

3~5(模孔¢2-5㎜)

6~10(模孔¢3-7㎜)

单位电耗产量(kg/kw.h)

≥23

≥27

产品漂浮率

>99%

>99%

操作控制方式

手动或全自动

手动或全自动

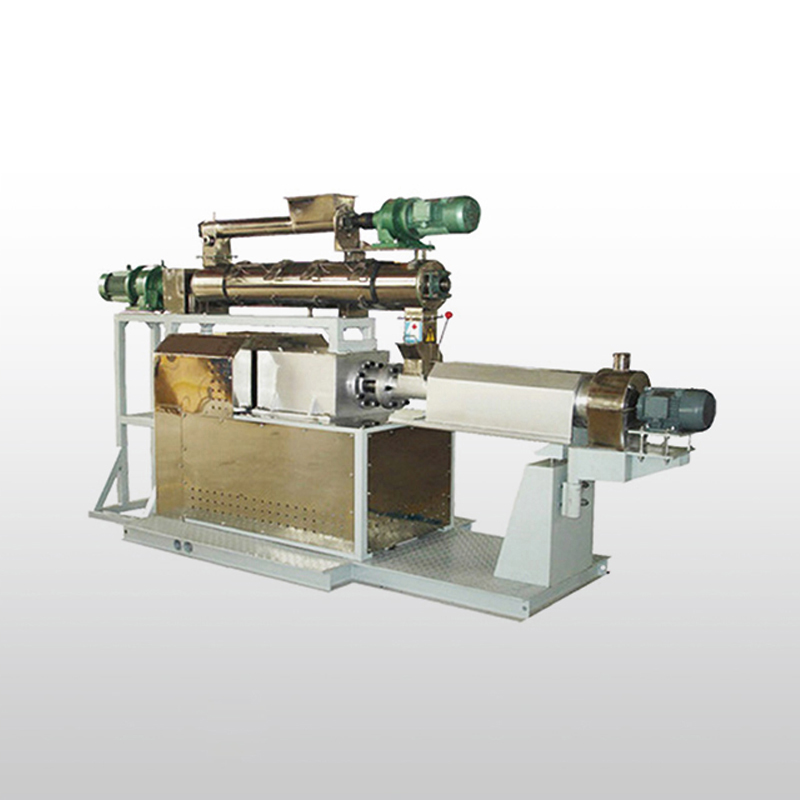

SPHS-D Series Single Screw Steam Extruder

SPHS-D系列单螺杆湿法膨化机

Feature

1. Stainless steel DDC with 12 steam injectors and 6 liquid nozzles.

2. Combined shaft makes it easy to check or replace bearings in bearing house.

3. Involute spline shaft is adapted makes it easy to adjust and replace the screw.

4. Circled tunnel design barrel with liner can achieve heating/cooling function. Steam and water can also be injected directly into the barrel.

5. Screw is made of special anti-wear alloy with large L/D ratio assures smoothly production for all kinds of sinking/floating feed.

6. Fast replacing mechanism for die and screw and on-line adjustment for cutter.

7. It is mostly suitable for produce floating pellet in die diameter 2~6mm.

Main Technical Parameters

Parameters

Model

Main Power

(kw)

Feeder Power (kw)

Cutter Power (kw)

Conditioner Power (kw)

Capacity

(t/h)

SPHS145D

90/110

1.5

4

11

1~3

SPHS175D

132/160

2.2

5.5

15

3~5

SPHS215D

200/250

2.2

7.5

22

5~10
