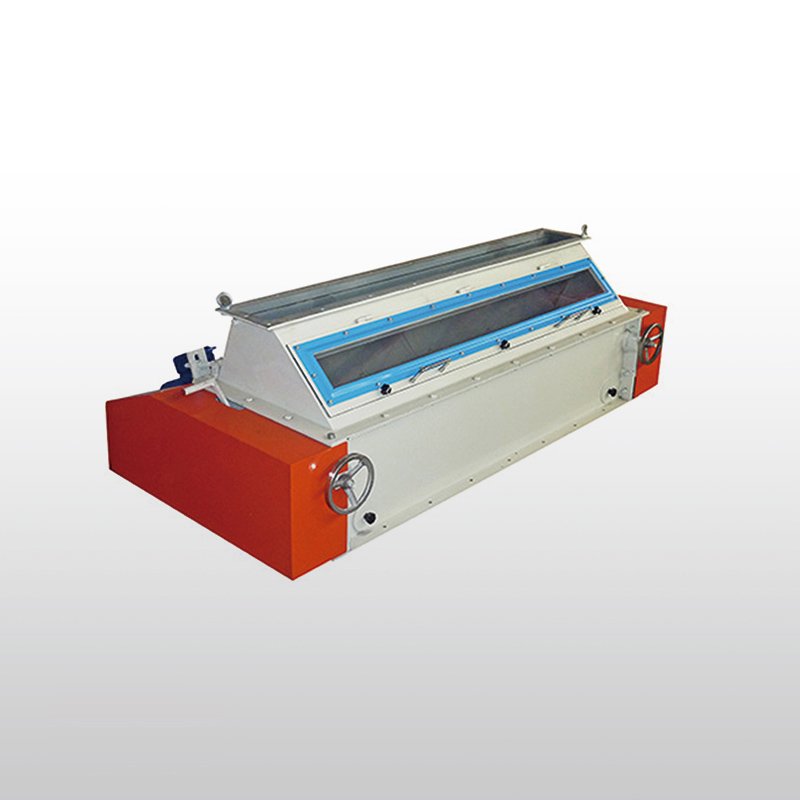

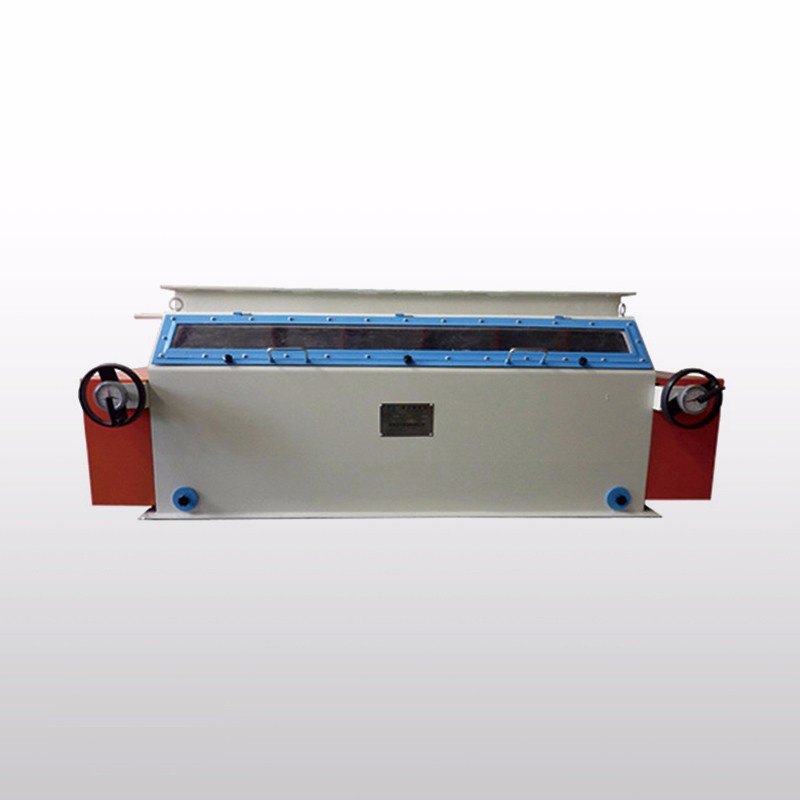

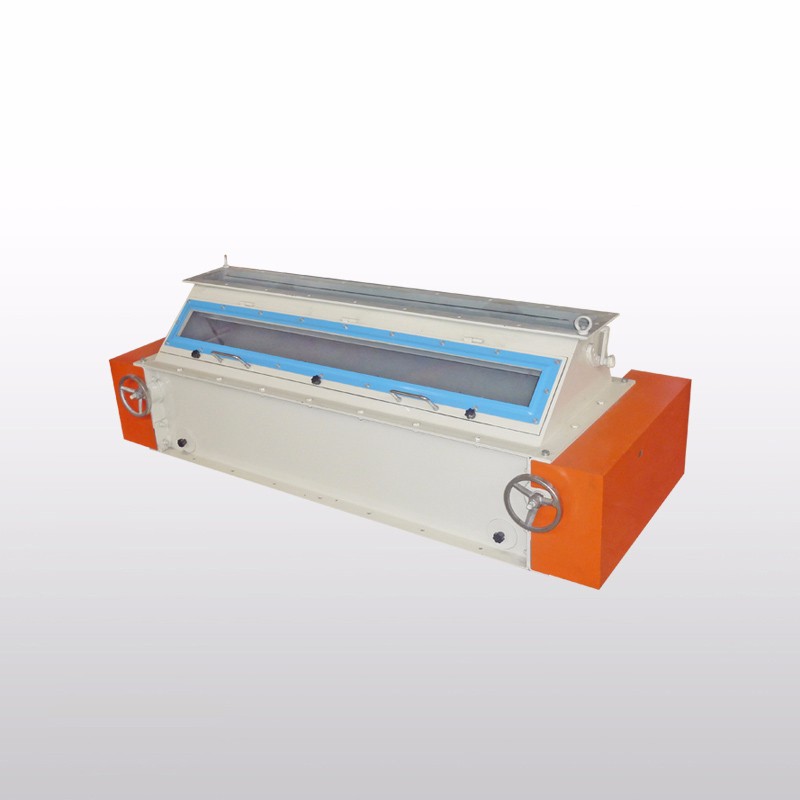

SSLG系列双辊碎粒机

    • SSLG系列双辊碎粒机
    • SSLG系列双辊碎粒机
    • SSLG系列双辊碎粒机
产品详情

产品特点:

1. 是将大颗粒破碎成小颗粒的专用设备,可将各种规格的颗粒料破碎成0.6-1.5mm或1-2.5mm的颗粒;

2. 结构紧凑,双辊结构,破碎均匀,粒度调节方便快捷;

3. 轧辊实行差动转速,颗粒料在两轧辊间受到挤压、剪切、撕裂作用,从而达到理想的破碎效果;

4. 独特的进料斗及旁路装置既起到匀料作用,又起到对不需破碎的物料起旁流作用,旁流时通过行程开关实现自动停机;

5. 采用窄V皮带传动,传动平稳,噪音低,工作可靠,操作方便。

主要技术及性能参数

型号

参数

SSLG15×80

SSLG15×100

SSLG15×150

SSLG20×170

产量(t/h)

3-4

4-6

5-8

15-20

配用动力(kw)

4

5.5

7.5/11

11/15

SSLG Series Double-roller Crumbler

SSLG系列双辊碎粒机

Features

1. Its specific purpose is to crumble big pellets into small ones which size is 0.6~ 1.5mm or 1~2.5mm;
2. Compact structure, evenly size granulates, convenient and quick adjustment;
3. Rolls perform differential rotational speed. Pellets are pressed, sheared and torn, thus reaching ideal crumbling effect;
4. Unique feeding hopper and bypass device not only serve to distribute the products, but also serve to bypass the products not requiring crumbling. When bypassing, automatic stoppage is realized through limit switch;
5. V-shape belt driving is adopted. It is stable, low noise, reliable and easy to operate.

Main Technical Parameters

Model

Parameters

SSLG15×80

SSLG15×100

SSLG15×150

SSLG20×170

Output(t/h)

3-4

4-6

5-8

15-20

Power(kw)

4

5.5

7.5/11

11/15
