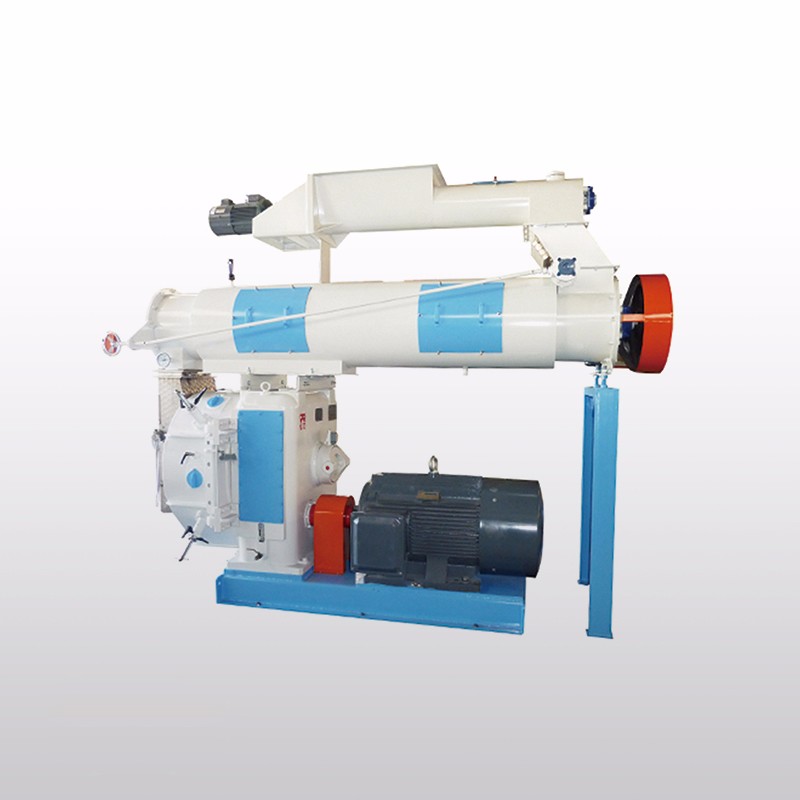

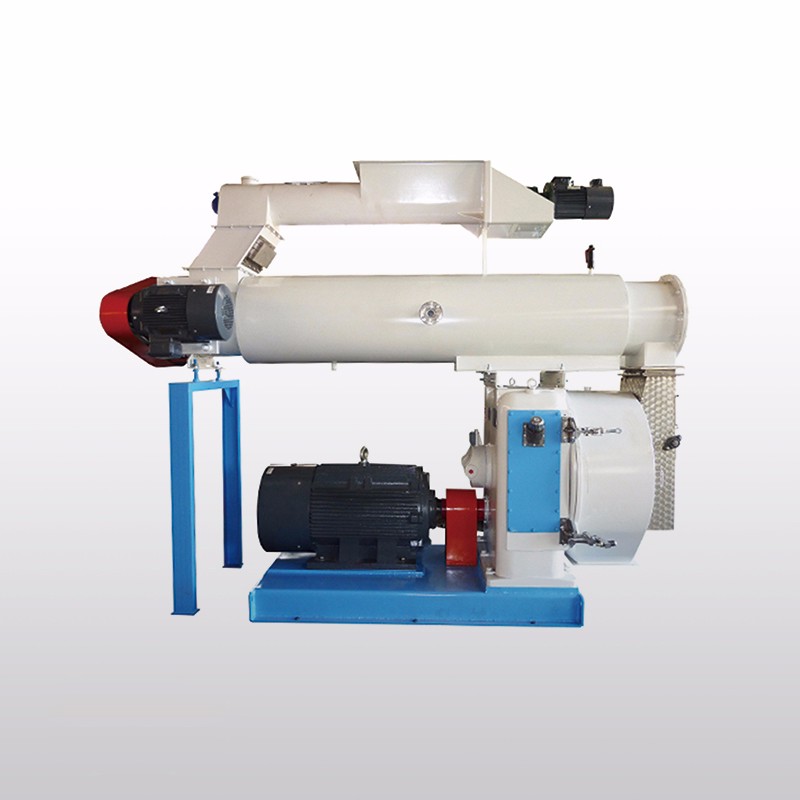

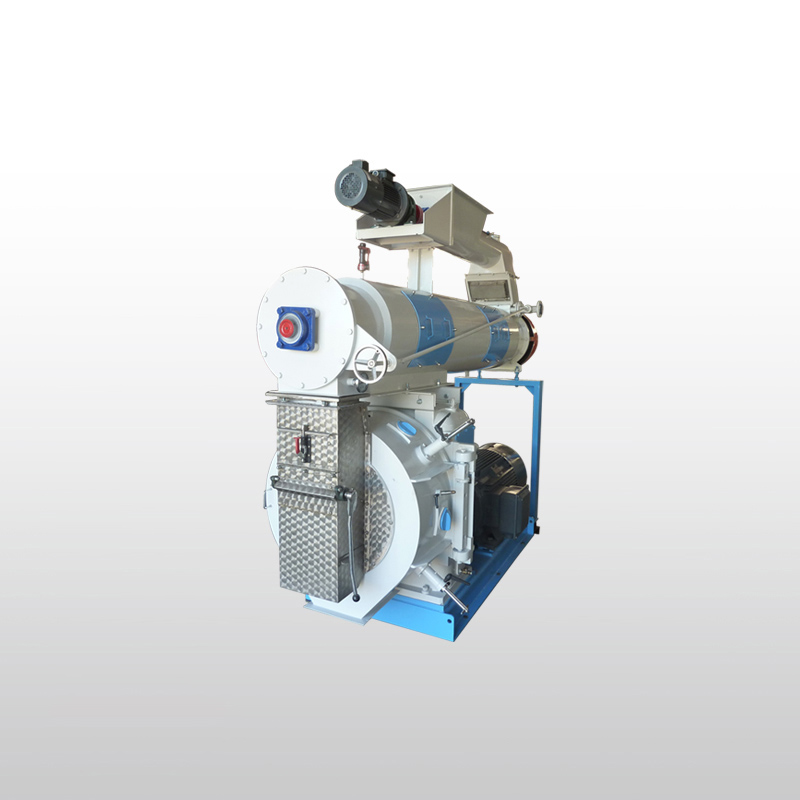

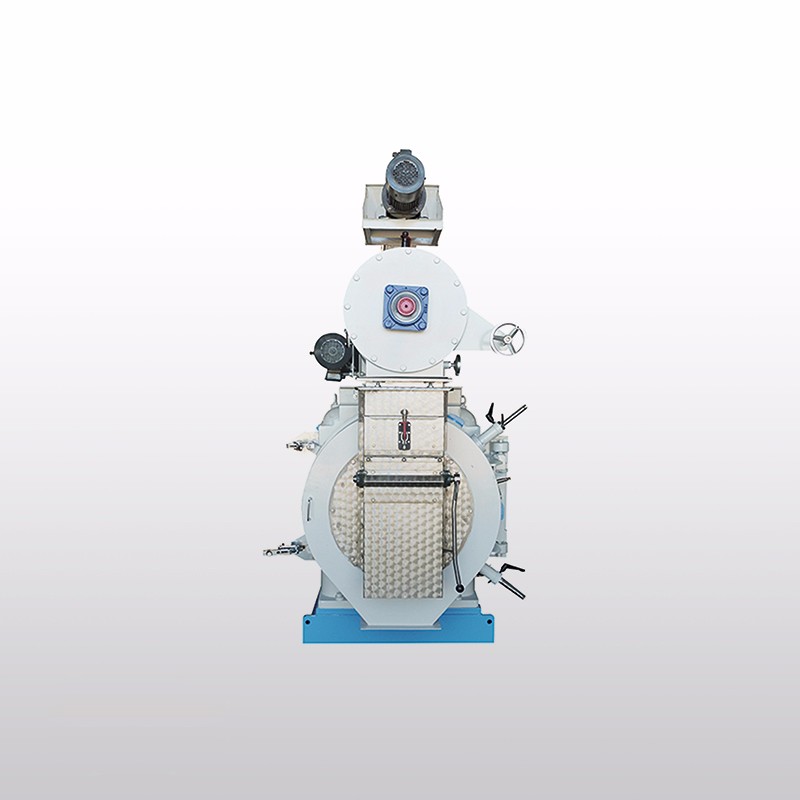

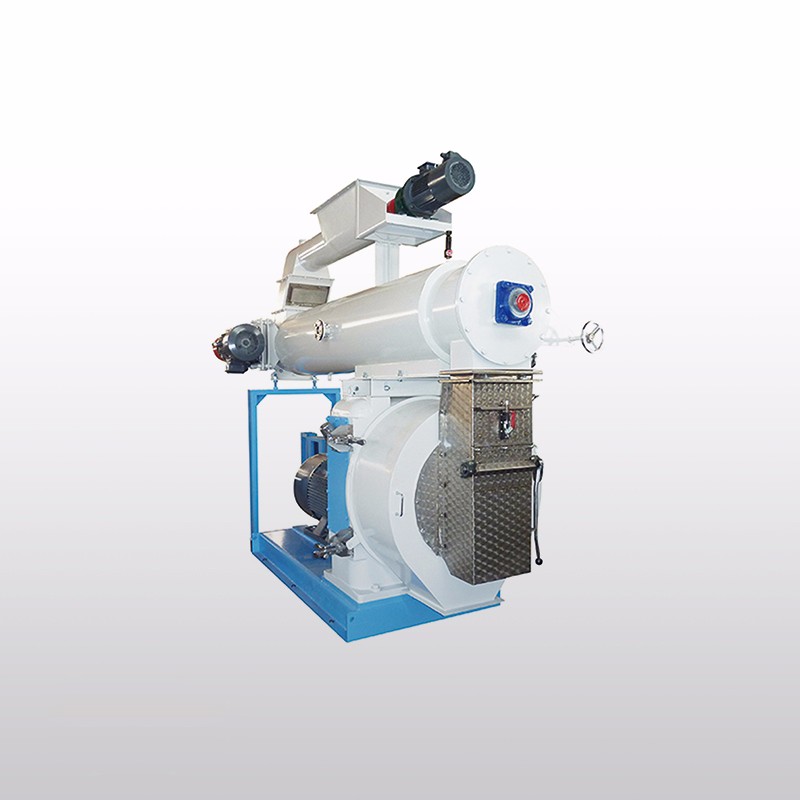

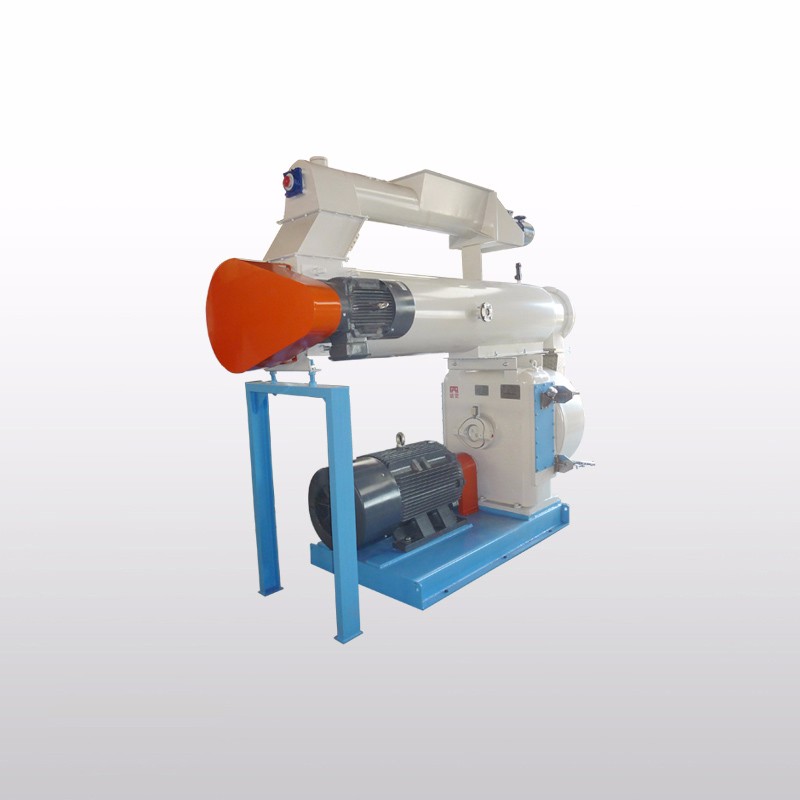

SZLH508高档畜禽型环模制粒机

    • SZLH508高档畜禽型环模制粒机
    • SZLH508高档畜禽型环模制粒机
    • SZLH508高档畜禽型环模制粒机
    • SZLH508高档畜禽型环模制粒机
    • SZLH508高档畜禽型环模制粒机
    • SZLH508高档畜禽型环模制粒机
产品详情

产品特点

1、高效的一级齿轮传动,保证能量的最大转移;
2、全不锈钢喂料器,变螺距防结拱机构,采用进口变频调速控制;
3、加大型不锈钢调质器,采用轴向进蒸汽,大大提高调质熟化时间和效果;
4、高精度的传动齿轮和齿轮轴采用渗碳淬火,硬齿面磨齿加工,传动平稳、噪声低、寿命长;
5、齿轮箱的材质和传动孔的高精度来自于专业铸造厂的铸造技术和数控加工设备的保证;
6、主传动系统轴承,油封均为进口高品质。且特别设置润滑回油系统,确保轴承润滑可靠;
7、环模与传动轮连接采用三片快卸式精密浇铸抱箍,环模拆卸方便快捷;
8、门盖及斜槽为全不锈钢制造,防腐能力强,使用寿命长;
9、电机与齿轴采用新型蛇形弹簧连轴器,拆装方便,传动可靠,效率高。

主要技术及性能参数

型 号

生产能力(t/h)

主机功率
(kw)

调质器功率
(kw)

喂料器功率
(kw)

环模内径
(mm)

颗粒规格
(mm)

SZLH508

4-20

110/132/160

7.5/11

1.5/2.2

¢508

¢2-18

SZLH508 High Grade Livestock Feed Pellet Mill

Features

1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; variable pitch anti-bridging structure; Imported FC control;
3. Full stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;
5. Gearbox and driving holes’ accuracy are guaranteed by specialized casting supplier and CNC;
6. The bearing and oil seal in the main drive are imported, and a specialized lubrication oil return system is available to ensure reliable bearing lubrication;
7. 3pcs of quick disassembling type precisely-cast die clamps are adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
9. The connection between motor and gearbox adopts new type S-shape spring coupling for more convenient disassembling and assembling and more reliable use.

Main Technical Parameter

Model

Output

(t/h)

Main Power

(kw)

Power Of Conditioner

(kw)

Power Of Feeder (kw)

ID Of Die (mm)

Pellet Size (mm)

SZLH508

8-18

110/132/160

7.5

1.5/2.2

¢508

¢2-18
